GamePendant for Tormach Mills

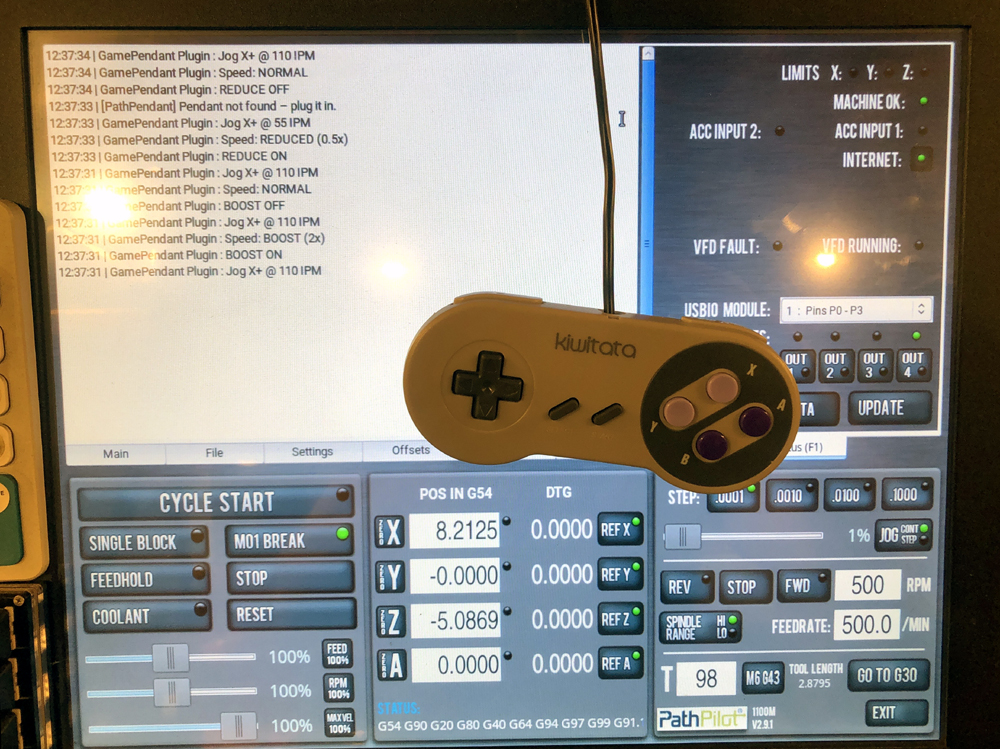

Enhance your Tormach CNC control experience with the GamePendant — a custom-coded SNES-style USB gamepad designed specifically for machines running PathPilot. This unit has been fully tested on my Tormach 1100M and should be compatible with all PathPilot-driven mills and lathes. However, compatibility across different models may require minor script adjustments. If you are willing to email me with any potential error codes, I will be more than happy to debug the code to get it to work on your machine. The more machines I have guaranteed results on, the more successful this listing will be.

Key Features:

• Simultaneous multi-axis control (X, Y, Z, A)
• Now includes fourth axis support!
• Speed control toggles: double or halve jog speed instantly
• Feedrate adjustment on the fly
• Dedicated Cycle Start & Stop buttons
• Custom button support: G30, coolant toggle, or other macros
• Rumble feedback for tactile confirmation

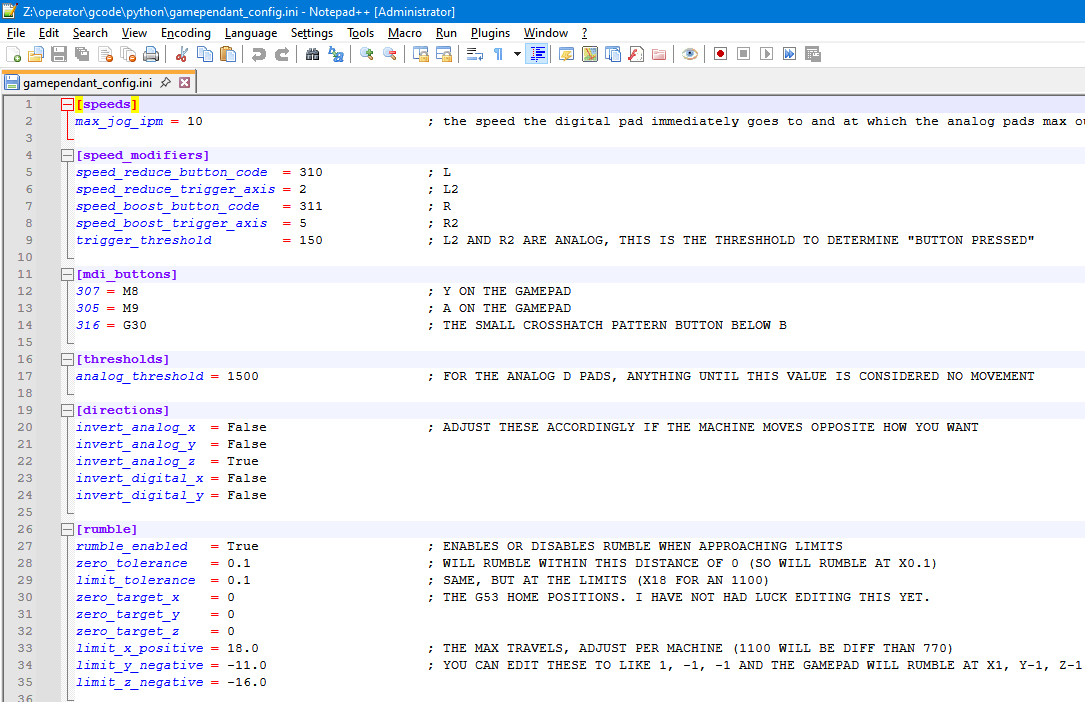

• Hot-reloadable: no need to restart the machine for script changes
• Does not interfere with OEM PathPilot files and survives PathPilot updates.
• These do NOT use janky, simulated mouse moves or keyboard clicks (xdotool for those in the know).
• These pendants issue actual LinuxCNC commands (what PathPilot is built on) so it will not matter what screen, monitor or resolution you have, nor does it matter if you have the Operator's Console or another jogger, shuttle or pendant installed.

Installation:

• PathPilot only — not compatible with Mach 3 or other CNC controllers
• Uses low-level PathPilot API calls for maximum responsiveness

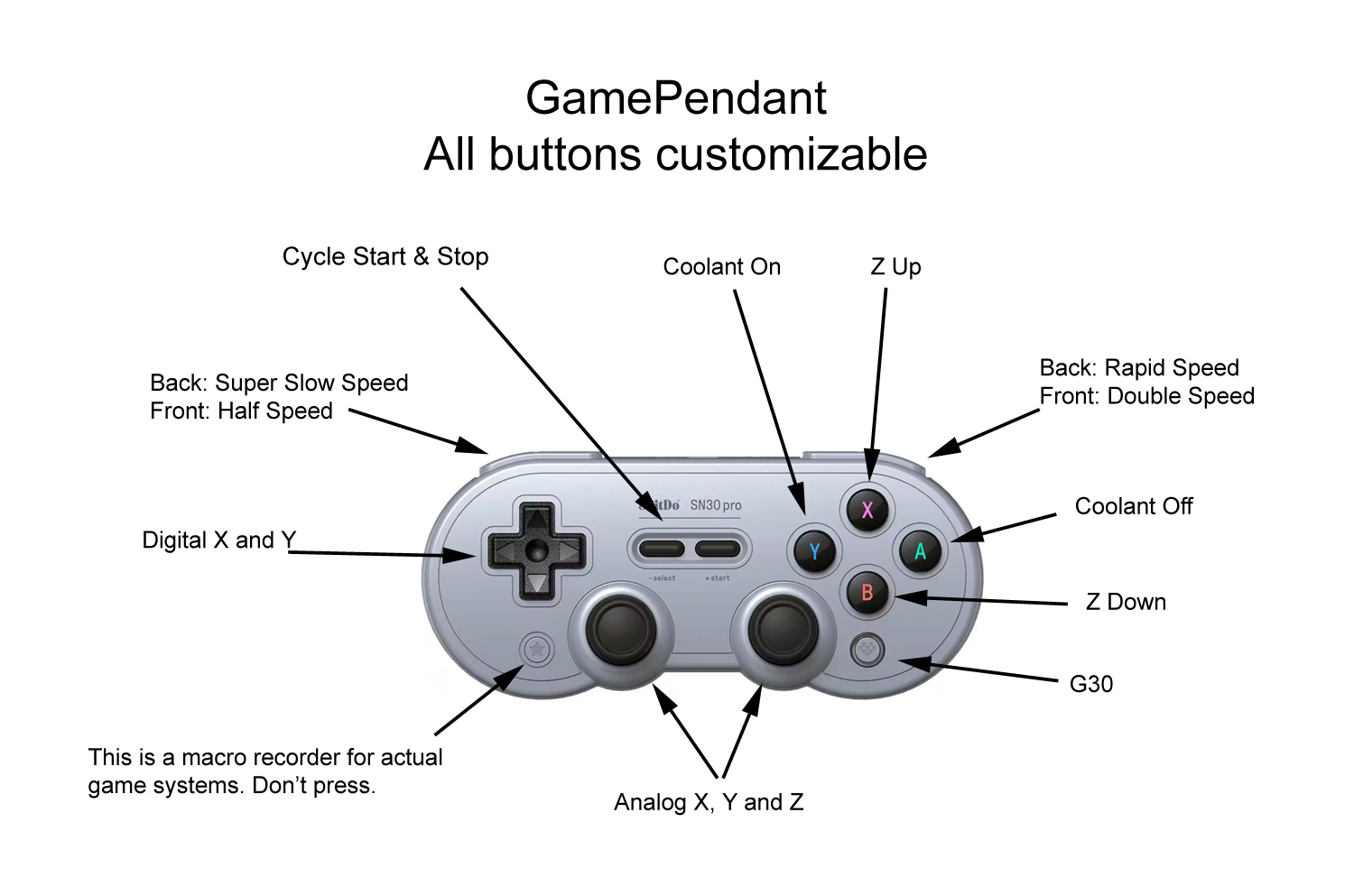

The $49.99 option (SN30 controller) includes analog D pads and four top buttons.

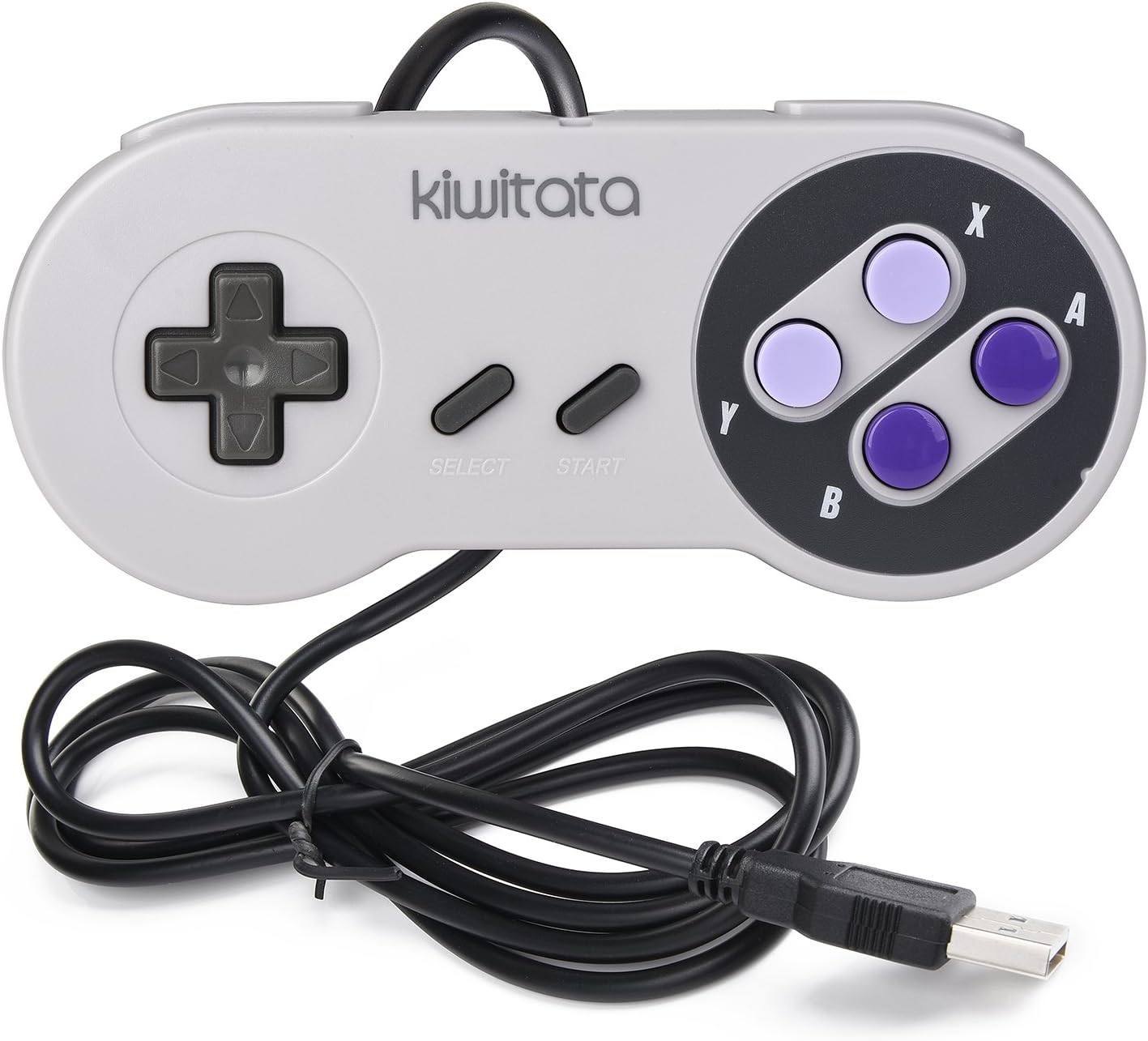

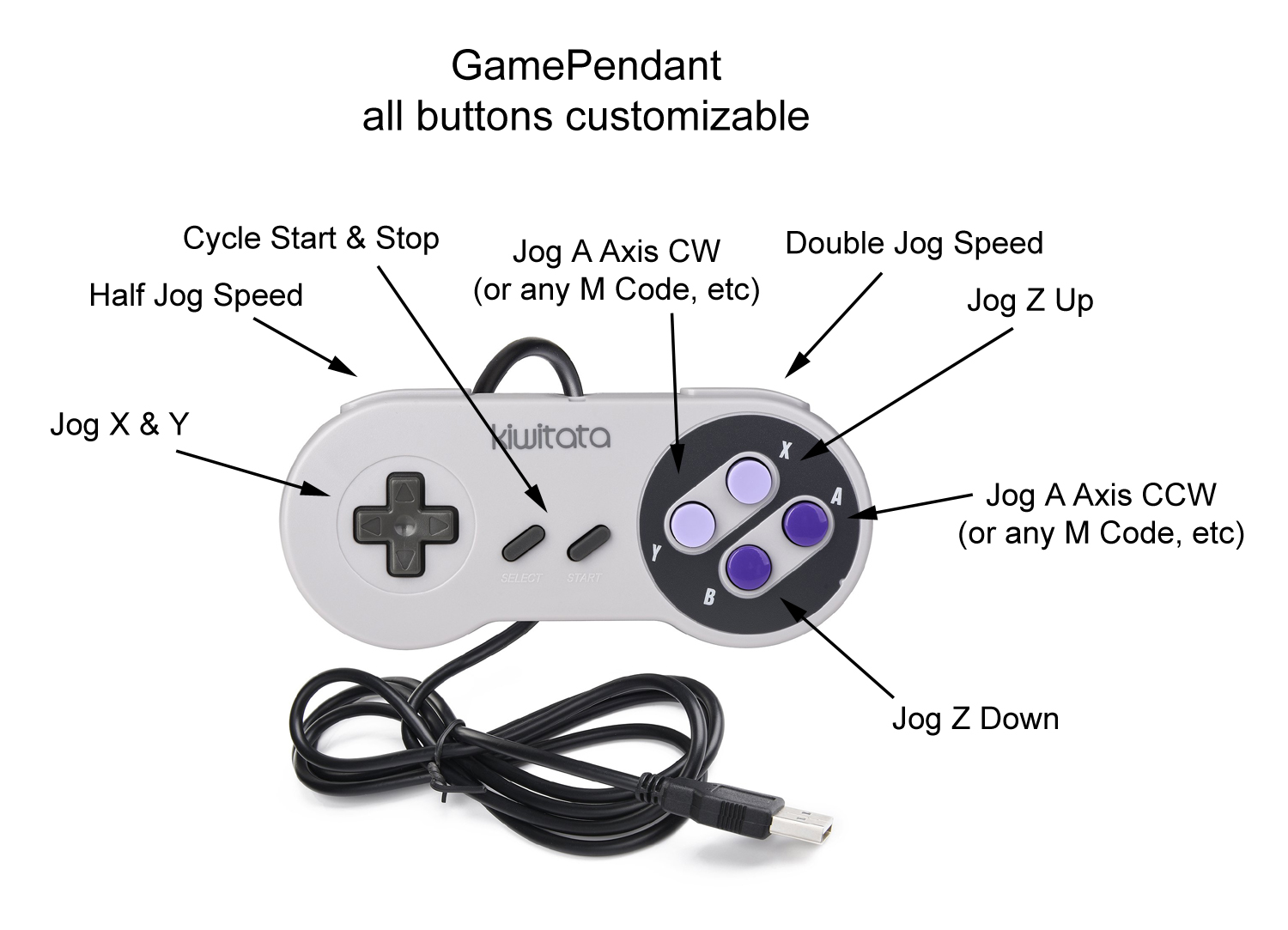

If you prefer a simpler, less cluttered controller, this Kiwi Controller does not have analog D pads, only two top buttons and no rumble.

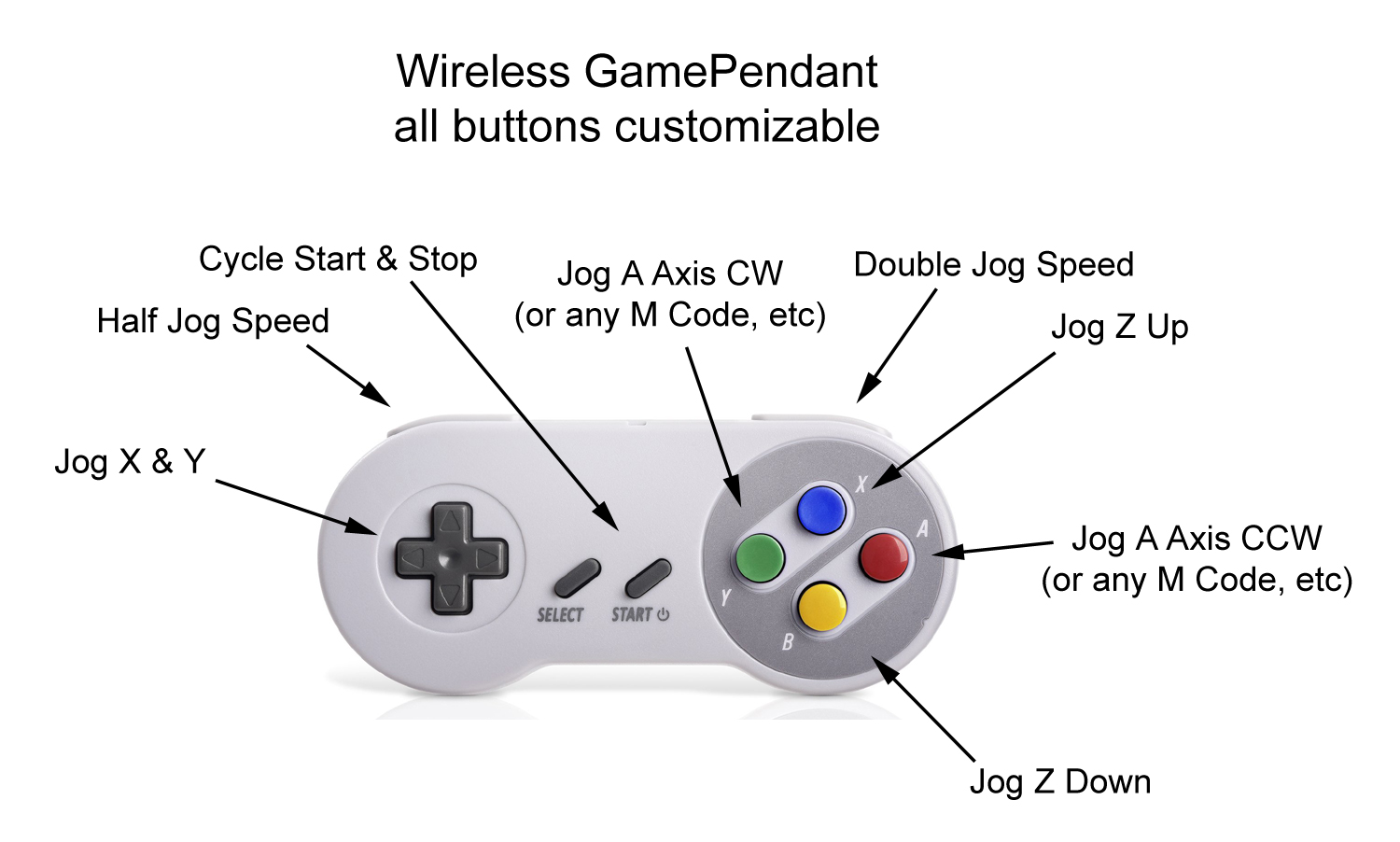

The wireless option. Video also shows 4th axis support.

Email me for a payment link.

Email me for a payment link.

Email me for a payment link.

Email me for a payment link.
